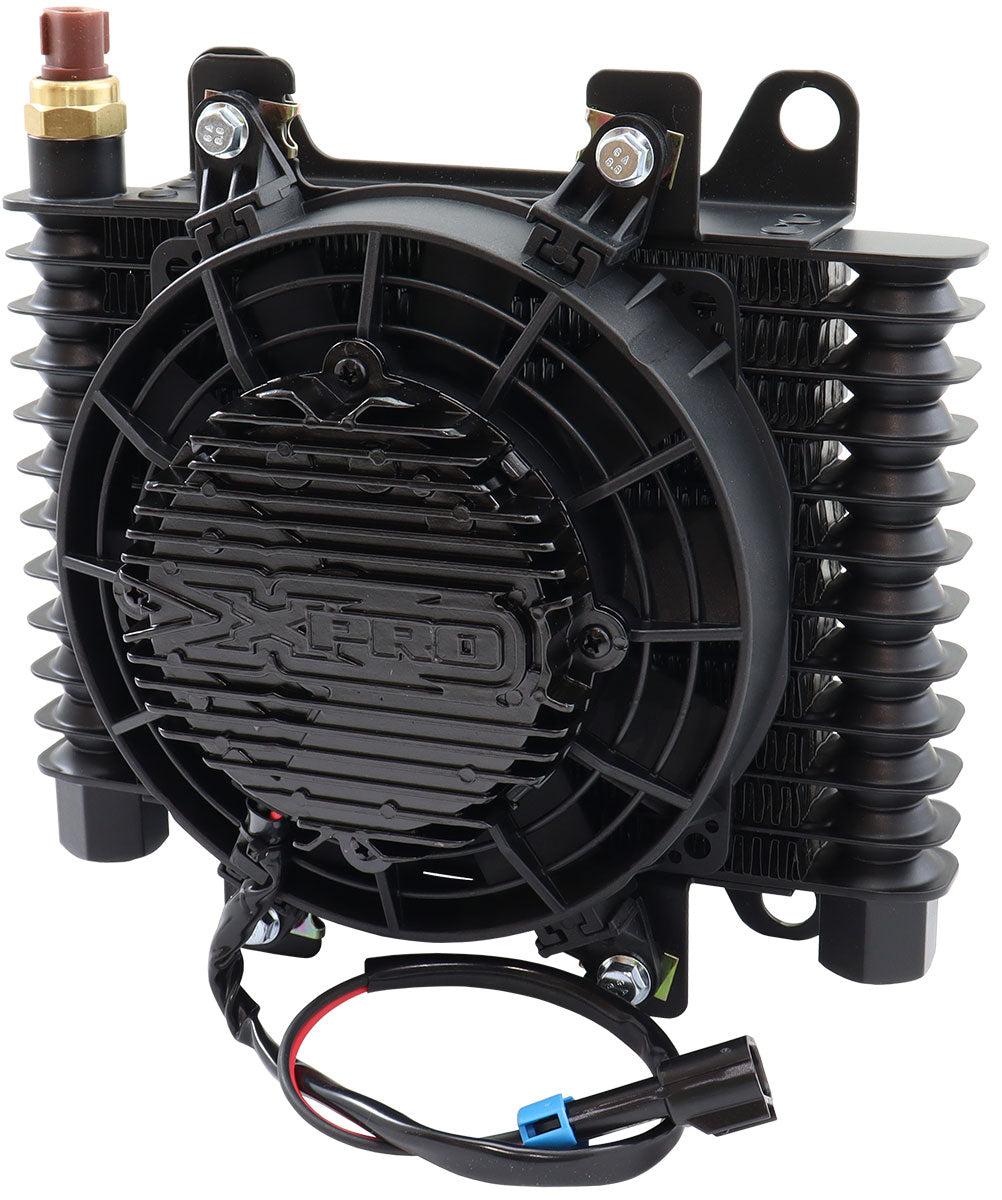

Aeroflow Competition Oil & Transmission Cooler 10" x 7-1/2" x 3-1/2" 7-1/2" Brushless Fan & Switch with -10 ORB

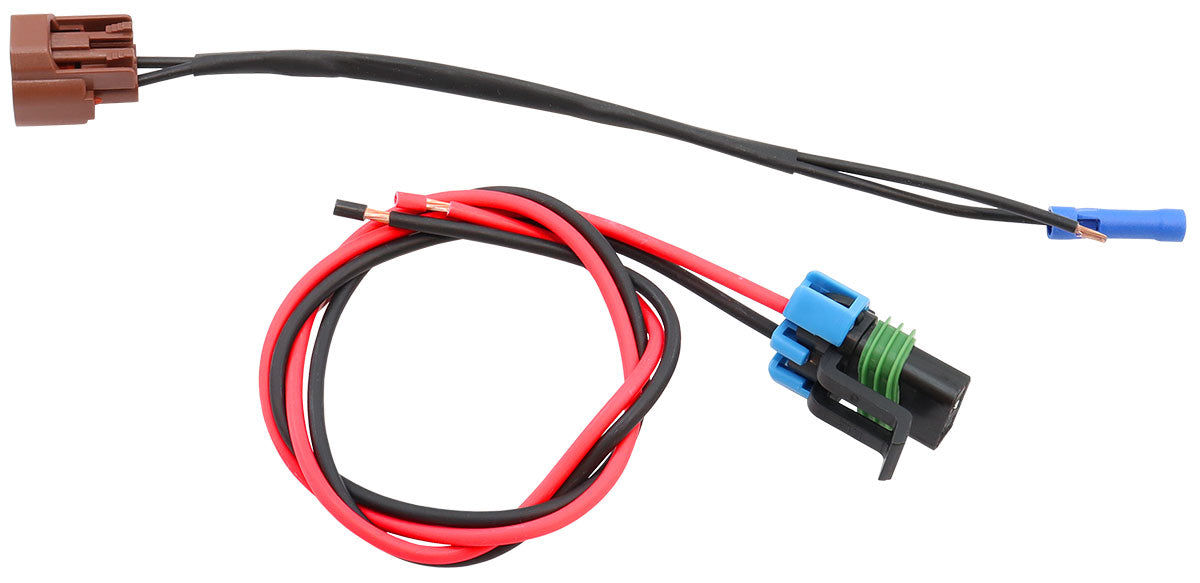

Aeroflow's engine and transmission competition oil coolers are a fin and plate design which provides more surface area for optimal cooling of any fluid in all applications. Each cooler is fitted with our 7-1/2" puller straight blade brushless fan which flows up to 430CFM with a 15 AMP draw for maximum cooling efficiency. The M18 x 1.50mm thermal switch located on the top of each cooler activates this brushless electric fan via a relay at 175°F/79.5°C. The cooler features built-in attachment points and rubber mounts are sold separately (AF72-4001), making mounting the cooler assembly a breeze. The cooler accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi. Available with -10 ORB female fittings for a perfect O-ring seal. Each cooler comes with thermostat wiring and electric fan wiring. The dimensions are 10” (254mm) x 7-1/2” (190.5mm).
